HYDRAULIC FLAIL-HEDGE MOWERS
ADVANCED LINE
CAMEL
Hidraulic flail-hedger mowers for medium power tractors that ensures a perfect visibility of the chopping device for the operator in every occasion.

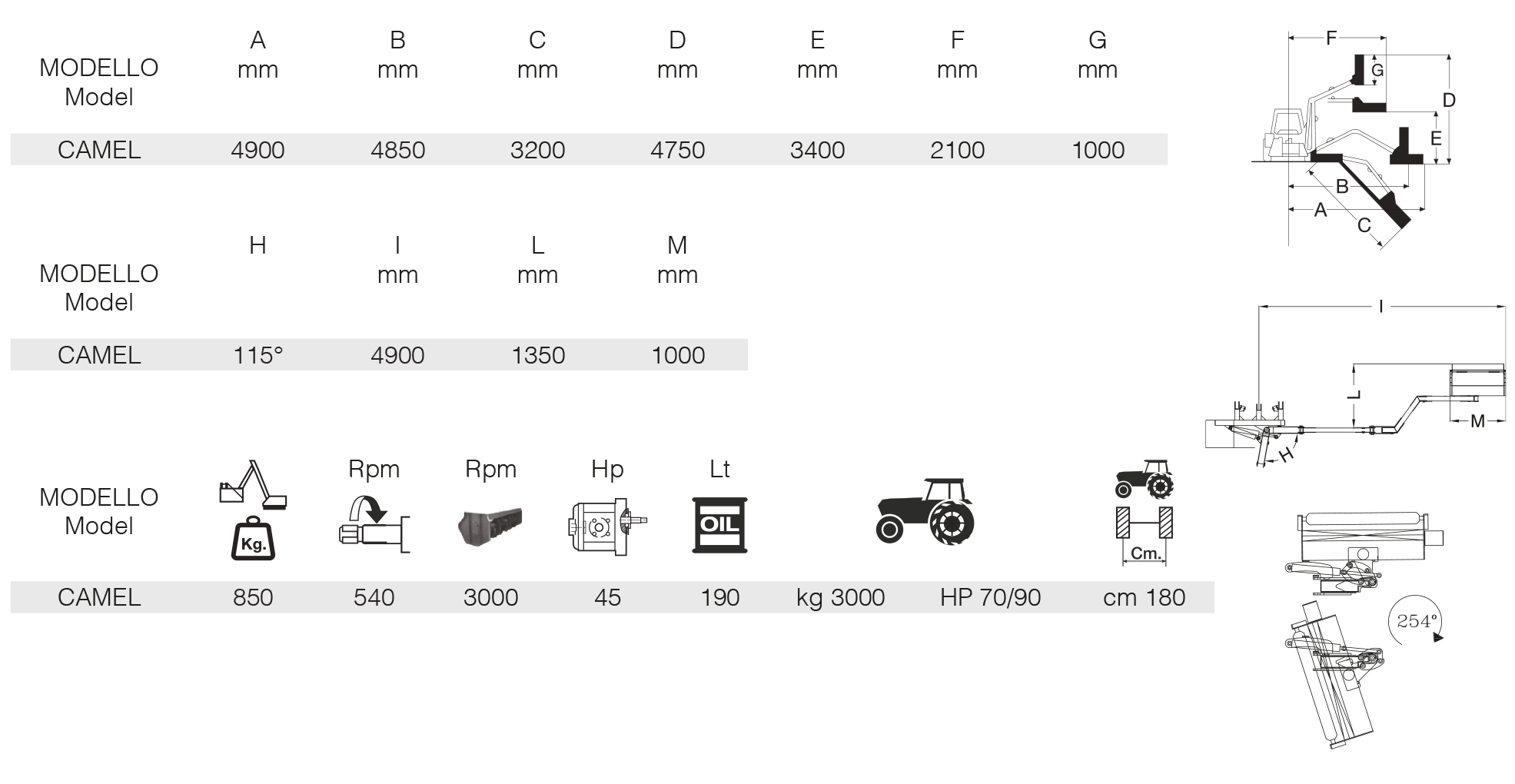

TECHNICAL INFORMATION
TECHNICAL INFORMATION
OIL FLOW RATE OF THE 2 PUMPS (L/MIN)
100 l/min + 31 l/min
Ø ROTOR TUBE AND THICKNESS
Ø82,5X10mm
Ø REAR ROLLER AND THICKNESS
Ø121X5mm
CEMENTED BUSHES IN THE JOINTS
Standard
FULL ROTATION HYDRAULIC SAFETY SHOCK-PREVENTION DEVICE
Standard
REVERSIBLE ROTOR
Standard
FLOATING HEAD
Standard
HOOD ON THE TANK
Standard
OIL COOLER WHIT THERMOSTAT
Optional
NITROGEN ACCUMULATORS
Optional
SPECIAL TOP LINK CONNECTION
Optional
BELTS DRIVE
Optional
TYPES OF ROTORS AVAILABLE
Standard
Cod.7003
Ø: 360mm
TLPX100 n.32+16
TLPX120 n.36+18
Standard
Cod.7001
Ø: 340mm
TLPX100 n.36
TLPX120 n.40
Cod.7012
Ø: 340mm
TLPX100 n.10
TLPX120 n.12
Cod.7002
Ø: 340mm
TLPX100 n.36+18
TLPX120 n.40+20
Cod.7021
Ø: 340mm
TLPX100 n.18
TLPX120 n.20
TYPES OF REMOTE CONTROLS AVAILABLE
CABLE CONTROLS (MM.2500)
SINGLE LEVER WITH CABLES (MM.2500)
ELECTRONIC CONTROLS MINI JOYSTICK
Movements of 1°arm, 2°arm and head rotation are proportional
but they can be carried out one at a time.
Buttons on-off for other movements.
INTERCHANGEABLE EQUIPMENT
