HEDGE BUSH CUTTERS

HEDGE CUTTERS

FLY 120

SPIDER 150

Bush cutter equipment with cutting bar for tree and hedge prunings up to 3 cm diameter.
For mini-tractors of group 1 without an indipendent hydraulic system

DOWNLOAD THE DOCUMENTATION

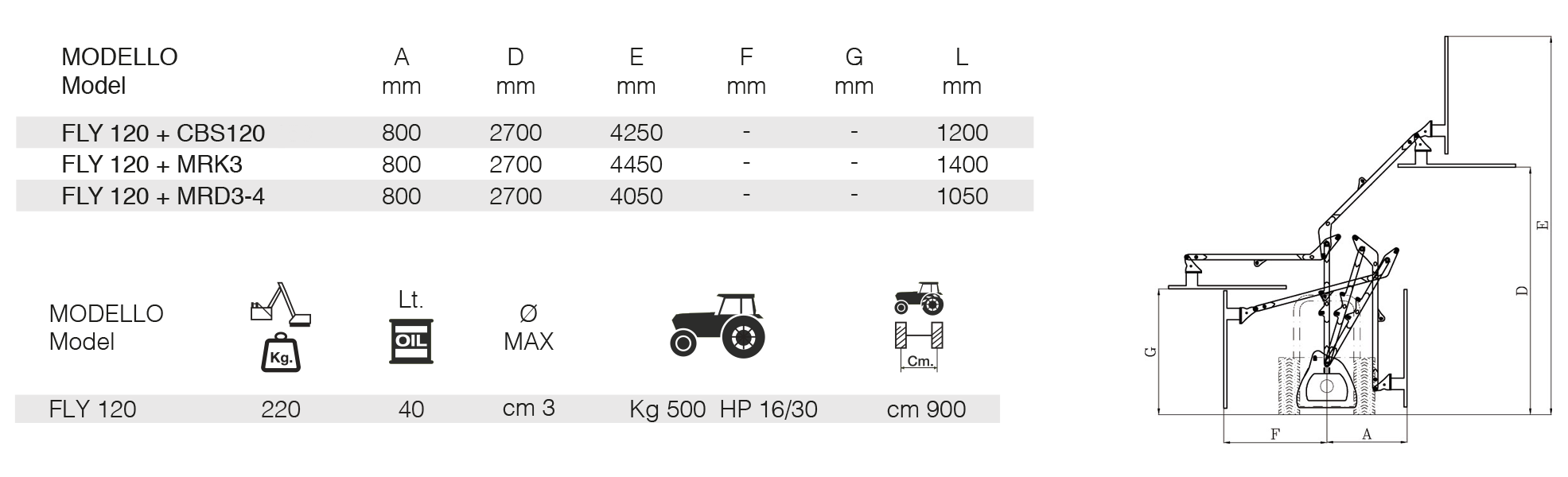

TECHNICAL INFORMATION

INTERCHANGEABLE EQUIPMENT

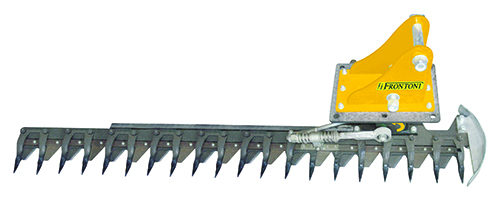

CBS 120-150

MRK 3

MRD 3-4

TECHNICAL INFORMATION

INDIPENDENT HYDRAULIC SYSTEM

Standard (47 l/min + 8 l/min)

WEAR-RESISTANT BUSHES IN THE JOINTS

Standard

scambiatore-di-calore

OIL COOLER

Optional

TRACTOR STABILIZERS

Optional

SPECIAL TOP LINK CONNECTION

Optional

STABILIZED GROUND SUPPORT KIT

Optional

TYPES OF REMOTE CONTROLS AVAILABLE

comandi-caviflessibili-3+1

CABLE CONTROLS (MM. 2000)

monoleva-caviflessibili-3+1

SINGLE LEVER WITH CABLES (MM. 2000)

joystick-Roller

ELECTRONIC CONTROLS JOYSTICK -ROLLER-

All movements are proportional but they can be carried out one at a time.

joystick-roller-autolivellamento-automatico

JOYSTICK -ROLLER- + SELF LEVELLING SYSTEM

All movements are proportional but they can be carried out one at a time,
there is an automatic self-levelling electronically controlled system
that keeps the interchangeable terminal tools at 0° or 90° off the ground.

WITH ELECTRONIC JOYSTICK,
IT IS INDISPENSABLE THE RADIATOR.
