HYDRAULIC FLAIL-HEDGE MOWERS
GREEN LINE
CAT 290-340-385
These Hydraulic flail-hedger mowers for compact tractors (30-50HP) is conceived to solve the problem
of cutting up in drains, street edges, embankments and parks.
TECHNICAL INFORMATION
TECHNICAL INFORMATION
OIL FLOW RATE OF THE 2 PUMPS (L/MIN)
47 l/min + 15 l/min
Ø ROTOR TUBE AND THICKNESS
Ø 60,3 X 8 mm
Ø REAR ROLLER AND THICKNESS
Ø 89 X 4 mm
CEMENTED BUSHES IN THE JOINTS
Standard
FULL ROTATION HYDRAULIC SAFETY SHOCK-PREVENTION DEVICE
Standard
REVERSIBLE ROTOR
Standard
FLOATING HEAD
Standard
OIL COOLER WHIT THERMOSTAT
Optional
NITROGEN ACCUMULATORS
Optional
SPECIAL TOP LINK CONNECTION
Optional
TYPES OF ROTORS AVAILABLE
Standard

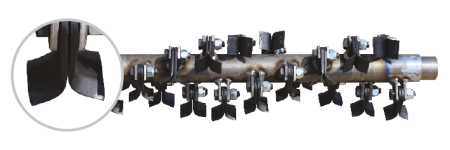

Cod. 7006
Ø: 230 mm
TLB50 n.28
TLB60 n.28
TLB80 n.40

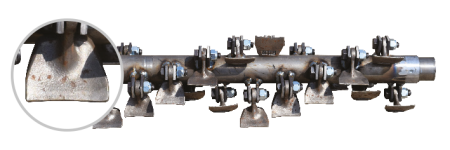

Cod. 7022
Ø: 230 mm
TLB50 n.14
TLB60 n.14
TLB80 n.20

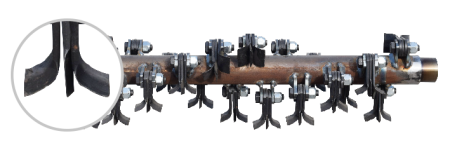

Cod. 7023
Ø: 230 mm
TLB50 n.28+14
TLB60 n.28+14
TLB80 n.40+20
TYPES OF REMOTE CONTROLS AVAILABLE
CABLE CONTROLS (MM. 2000)
SINGLE LEVER WITH CABLES (MM. 2000)
ELECTRONIC CONTROLS MINI JOYSTICK
Movements of 1°arm, 2°arm and head rotation are proportional
but they can be carried out one at a time. Buttons on-off for other movements.
INTERCHANGEABLE EQUIPMENT
CBS 120-150
MRK 3
