HYDRAULIC FLAIL-HEDGE MOWERS

ADVANCED LINE

ELEPHANT

Hidraulic flail-hedger mowers for medium power tractors that ensures a perfect visibility
of the chopping device for the operator in every occasion.

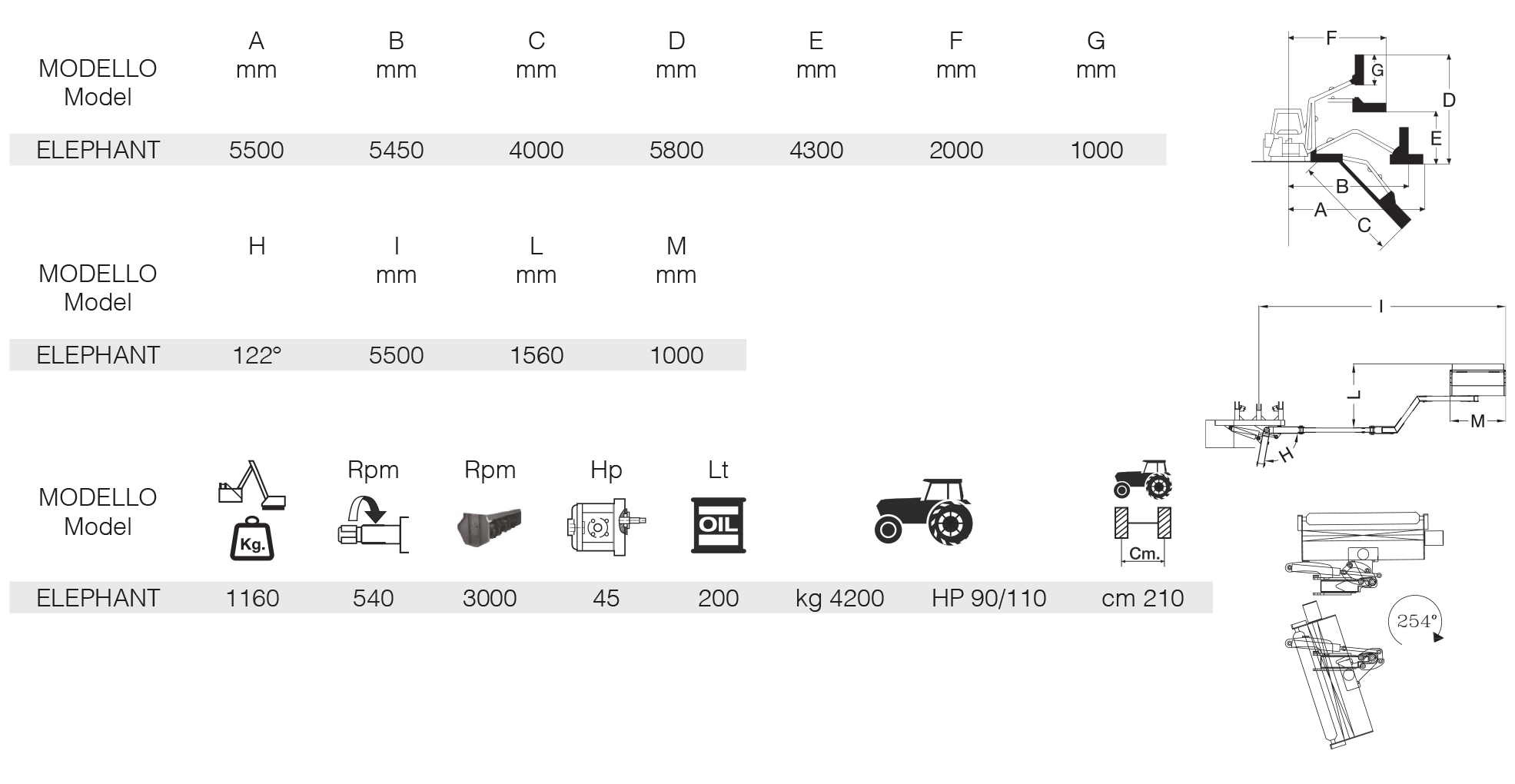

TECHNICAL INFORMATION

TECHNICAL INFORMATION

OIL FLOW RATE OF THE 2 PUMPS (L/MIN)

100 l/min + 31 l/min (45HP)
115 l/min + 38 l/min (60HP)

Ø ROTOR TUBE AND THICKNESS

Ø 114 X 10 mm

Ø REAR ROLLER AND THICKNESS

Ø 121 X 5 mm

CEMENTED BUSHES IN THE JOINTS

Standard

FULL ROTATION HYDRAULIC SAFETY SHOCK-PREVENTION DEVICE

Standard

REVERSIBLE ROTOR

Standard

FLOATING HEAD

Standard

HOOD ON THE TANK

Standard

KIT CAST IRON ENGINE AND PUMP (HP60)

Optional

OIL COOLER WHIT THERMOSTAT

Optional

NITROGEN ACCUMULATORS

Optional

BELTS DRIVE

Optional

SPECIAL TOP LINK CONNECTION

Optional

TYPES OF ROTORS AVAILABLE

Standard
Cod. 7003
Ø: 400 mm
TPX100 n.32+16
TPX120 n.40+20

Cod. 7004
Ø: 425 mm
TPX100 n.28+14
TPX120 n.32+16

Cod. 7001
Ø: 380 mm
TPX100 n.36
TPX120 n.44

Cod. 7014
Ø: 425 mm
TPX100 n.22
TPX120 n.26

img-ev-rotore-7012

Cod. 7012
Ø: 380 mm
TPX100 n.12
TPX120 n.14

img-ev-rotore-7011

Cod. 7011
Ø: 400 mm
TPX100 n.44
TPX120 n.52

Cod. 7002
Ø: 380 mm
TPX100 n.36+18
TPX120 n.44+22

Cod. 7016
Ø: 400 mm
TPX100 n.18
TPX120 n.22

Cod. 7017
Ø: 420 mm
TPX100 n.18
TPX120 n.22

TYPES OF REMOTE CONTROLS AVAILABLE

CABLE CONTROLS (MM. 3000)

PROPORTIONAL ELECTRONIC CONTROLS

Movements of 1° arm, 2° arm and head rotation are proportional
but they can be carried out one at a time.
Buttons on-off for other movements.

FULL ELECTRONIC PROPORTIONAL JOYSTICK KOBI

All movements are proportional and they can be carried out at the same time.
The activation of the cutter is electronic with a timer.
It is possible to decrease the machine speed directly from the control panel.
