HYDRAULIC FLAIL-HEDGE MOWERS
GREEN LINE
ELITE 350-400-450
Hydraulic flail-hedger mowers for small and medium power tractors, suitable for cleaning embankments,
ditches and road sides.
TECHNICAL INFORMATION
TECHNICAL INFORMATION
OIL FLOW RATE OF THE 2 PUMPS (L/MIN)
47 l/min + 15 l/min
Ø ROTOR TUBE AND THICKNESS
Ø 82,5 X 10 mm
Ø REAR ROLLER AND THICKNESS
Ø 121 X 5 mm
CEMENTED BUSHES IN THE JOINTS
Standard
MECHANICAL SAFETY IMPACT-PREVENTION DEVICE
Standard
REVERSIBLE ROTOR
Standard
FLOATING HEAD
Standard
HYDRAULIC SAFETY SHOCK-PREVENTION DEVICE ON THE 2° ARM
Optional
OIL COOLER WHIT THERMOSTAT
Optional
SPECIAL TOP LINK CONNECTION
Optional
BELTS DRIVE
Optional
TYPES OF ROTORS AVAILABLE
Standard

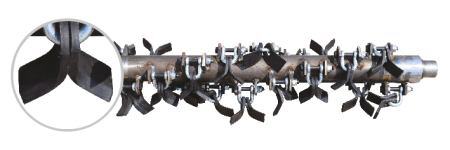

Cod. 7001
Ø: 340 mm
TLX80 n.28
TLX100 n.36
Cod. 7002
Ø: 340 mm
TLX80 n.28+14
TLX100 n.36+18

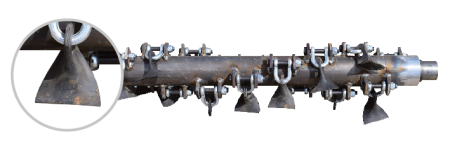

Cod. 7021
Ø: 340 mm
TLX80 n.14
TLX100 n.18
TYPES OF REMOTE CONTROLS AVAILABLE
CABLE CONTROLS (MM. 2500)
SINGLE LEVER WITH CABLES (MM. 2500)
ELECTRONIC CONTROLS JOYSTICK -ROLLER-
All movements are proportional but they can be carried out one at a time.
INTERCHANGEABLE EQUIPMENT
CBS 120-150
MRK 3
